Text to Vector AI Agents: Generate, Edit, Recolor & Deliver Brand-Ready Graphics at Scale (2026 Guide)
Your coding agent just built an entire landing page. Routing, layout, responsive breakpoints, form validation, all correct on the first pass. Then it reaches the feature section and stalls. It needs six icons. So it drops in a placeholder from a random URL, or leaves a comment that says “add icon here,” or fetches a 512px PNG that looks soft the moment someone opens the page on a retina screen.
Design agents and content agents hit the same wall. They can call almost any API you hand them, but most image tools hand back pixels, and a pixel asset is a dead end the moment brand rules or scale enter. You cannot recolor it for dark mode without a round trip. You cannot serve a favicon and a print sheet from one file. You cannot diff it in a pull request. The agent produced something, but not an asset you can maintain.
The fix is not a better prompt. It is a better return type. When the tool hands back SVG markup instead of an image, the agent can read the result, change one attribute, save it into the repo and pass it to the next step. That turns “the agent made a picture” into “the agent shipped an asset.”
This guide covers the four jobs a text to vector agent has to do well, generate, edit, recolor and deliver, plus how to wire the tools into an editor or a pipeline and how the agent should decide which one to call.
What a Text to Vector AI Agent Actually Is
A text to vector agent is not a model. It is a model plus a tool surface that speaks vectors.
The agent part is whatever you already use: Claude Code, Cursor, a VS Code assistant, a worker running in CI. The vector part is a set of structured functions it can call, exposed through MCP (Model Context Protocol, the standard that lets an assistant discover and call external tools) or through a plain REST API.
What separates a vector tool from a generic image tool is the shape of the response. Generic tools return a URL to a raster file. Vector tools return SVG source, which is text. That distinction buys you four things:
- The agent can read it. It can open the file, count the paths, find every fill and confirm the viewBox matches your grid before committing.
- The agent can change it. Swapping a color or a stroke width is a text edit, not a regeneration.
- The agent can review it. SVG diffs cleanly in git, so a reviewer sees which attribute changed instead of two images that look vaguely different.
- The agent can scale it. One file covers a 16px favicon and a print sheet with no export matrix.
Every capability below exists because the output is text.

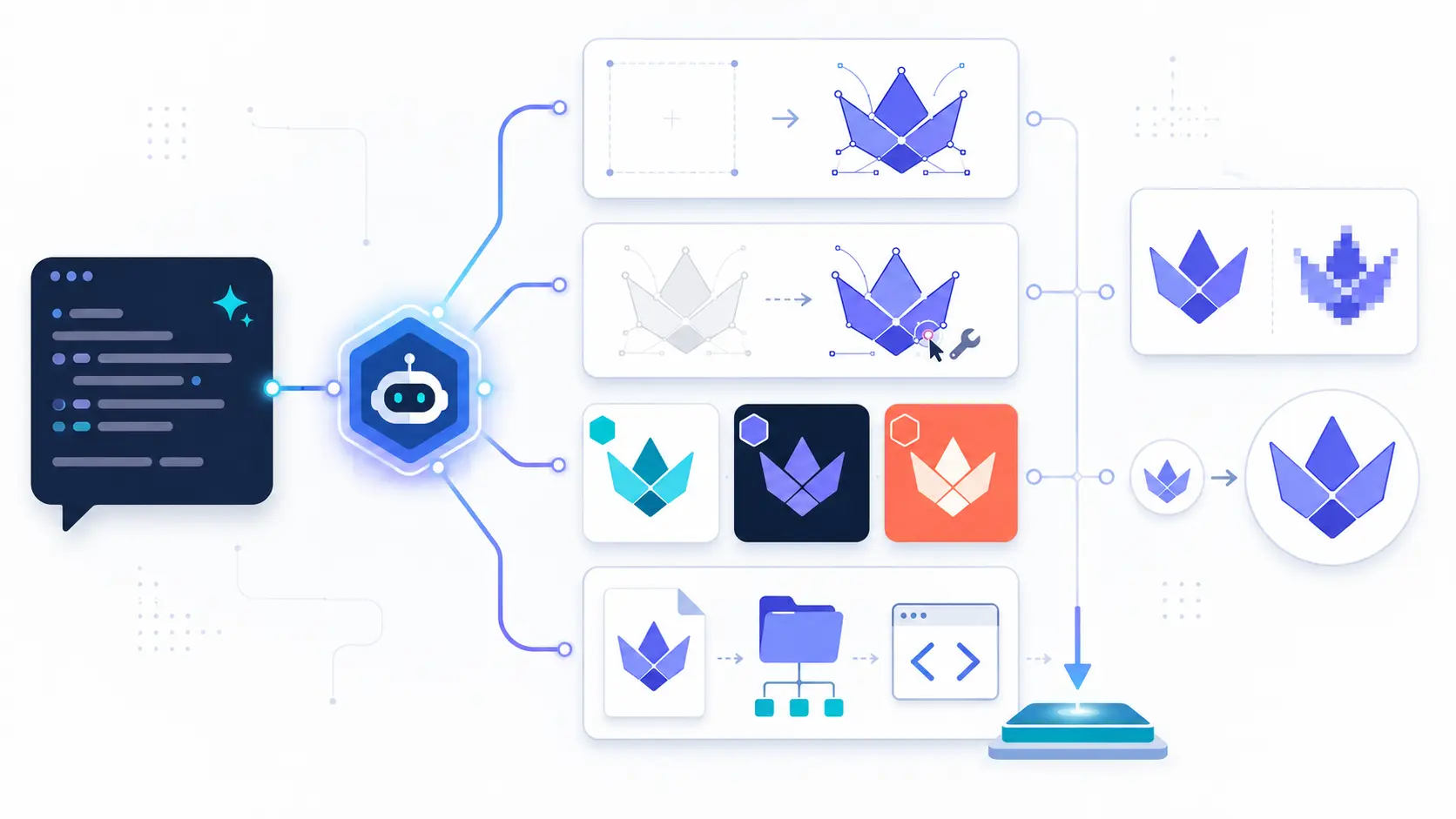

The Four Jobs an Agent Has to Cover
Most tool sets in this space cover the first job and stop, which leaves your agent able to make new things but unable to maintain them. That is backwards for any team that already has a brand.
| Job | What the agent does | What it hands back | Typical credit cost |
|---|---|---|---|
| Generate | Turns a written brief into a new vector asset | SVG source or a hosted SVG URL | 1 to 5 |
| Edit | Changes an existing asset without rerolling it | Updated SVG, structure preserved | 2 to 5 |
| Recolor | Produces theme variants from one master file | One SVG per theme, exact hex values | Priced as an edit |
| Deliver | Optimizes, converts and writes files where they belong | Files on disk, or PDF, EPS, DXF, AI, PS | 0.25 to 0.5 |
Job 1: Generate
Teams get generation wrong by treating the prompt as a wish rather than a specification.
“An icon of a shopping bag” gives the model total freedom, which is the last thing you want when the icon has to sit beside eleven others. “A shopping bag icon on a 24 by 24 viewBox, single stroke of 1.5px, rounded caps, no fill, color #1A1A1A” gives it a job with a right answer.
Name the canvas size, stroke weight, fill or stroke choice, corner treatment and exact palette on every call, as numbers and hex codes. Adjectives like “thin” or “dark gray” get read differently each time, which is exactly how a set drifts apart.
A minimal call against the SVGMaker API looks like this:
The parameter that matters most for agents is svgText: true. It puts the raw SVG source in the response body, so the agent never needs a second request to see what it made. The response also carries creditsUsed and creditsRemaining, letting the agent budget a run instead of discovering it is out of credits halfway through forty icons.
Quality tiers move the cost between 1 and 5 credits. Draft passes belong on the low tier. Save the high tier for what ships.
Job 2: Edit
Here is the habit that quietly wrecks icon sets: when an asset is almost right, the agent regenerates it.
Say the fifth icon of twelve has a stroke that reads heavy. Regenerating gives you a fresh interpretation of the whole icon. The stroke may be fixed, but the corners are now sharper and the negative space is different, so the icon no longer belongs to the set. You solved one problem and created two.
Editing sends the existing file back with an instruction attached, so everything you did not ask about stays put:
Note the input is a PNG. The edit endpoint accepts raster input and still returns vector output, which makes it the bridge for an agent that inherited legacy assets. An old logo goes in as a bitmap and comes back as scalable markup with the change applied.
The rule is simple: if a version already exists, use AI editing to refine it. Only generate something new when there is nothing to start from.
Job 3: Recolor
Recoloring is where most agent tooling goes quiet, and it is where real brand work lives. Nobody ships one version of an icon. They ship light, dark, inverted for the colored hero section, and often a high contrast version for accessibility.
Doing that by hand across sixty icons is a full day. Doing it with an agent is a loop that costs one edit per variant.
The thing to get right is precision. “Make it work on dark backgrounds” produces something plausible and unrepeatable, and two runs give you two different grays. Hand the agent the actual mapping instead:
“Recolor this icon for the dark theme. Replace #1A1A1A with #F5F5F5, replace #666666 with #A0A0A0, and leave every other color unchanged. Do not alter any path data, the viewBox, or the stroke widths.”
Two details make that work. It names source and destination hex values, so run ten is identical to run one. And it fences off geometry, which stops the model from “improving” the shape while it is in there changing colors.
Because the output is source, the agent can verify its own work: read the returned markup, collect every fill and stroke, and check them against the approved palette. If a stray color appears it retries instead of committing a broken variant. That loop is impossible when the tool returns a PNG.
Job 4: Deliver
Generation gets the applause, but delivery decides whether the agent saved you time or handed you homework.
It starts with the response format. svgText gives the agent source inline, which is what you want when it is writing a React component. svgUrl gives a hosted file, which is what you want for a gallery or an email. The agent should pick based on destination rather than default to one forever.
Three steps in the last mile are worth automating:
- Optimize before committing. An optimization pass strips metadata, comments and redundant precision, typically cutting 10 to 30 percent off the file. It costs 0.5 credits and it is the difference between a clean diff and a 40KB blob of Illustrator leftovers in your repo.
- Convert when the destination is not the web. The same master exports to PDF, EPS, DXF, AI and PS at 0.5 credits each, covering print, cutting machines and CNC without opening a desktop app.
- Batch the repetitive work. Up to 10 files go through a single conversion call at 0.25 to 0.5 credits each, so a product catalog does not become 200 sequential requests.
Then the agent writes files into the right folder with sensible names and adds the imports. That last part sounds trivial and it is what most tool sets leave to you.
How to Wire It Up
Two integration paths, chosen by where the agent lives.
In your editor, through MCP
If the agent is a coding assistant, MCP is the right path. The tools sit alongside everything else it can do and it calls them mid task, without you leaving the file.
Installing into Claude Code is one command:
VS Code takes the same server through a stdio entry in your MCP config. Once registered, keep working and add “use svgmaker” to your request. The assistant works out where assets are needed and creates them in place.
You get a full working set rather than a single generate function: svgmaker_generate for new work, svgmaker_edit for changes, svgmaker_convert for raster input and format changes, and svgmaker_preview for a look before committing. Alongside those sit svgmaker_account_info and svgmaker_account_usage for credits, a full set of generation tools for listing, fetching, downloading, sharing and deleting past work, and gallery tools for browsing public assets. Setup for every editor lives on the SVGMaker MCP Server page.
That history layer matters. It means the agent can look up what it made last week instead of paying to recreate it.
In a pipeline, through REST
If the agent runs in CI, a queue worker, or inside your own product, call the API directly.
| Endpoint | Purpose | Credits |
|---|---|---|
POST /v1/generate | Prompt to SVG | 1 to 5 |
POST /v1/edit | Change an existing asset | 2 to 5 |
POST /v1/convert | Raster to vector, or format conversion | 0.25 to 1 |
Every endpoint returns the same envelope, with success, a data object holding svgUrl, svgText and creditCost, and a metadata object holding the request ID and credit balance. Consistent shapes matter more for agents than for humans, because the agent parses the response rather than looking at it.
Two operational notes. Rate limits sit at 5 requests per minute on generate and edit and 5 to 10 on convert, returning a 429 with retry headers when exceeded, so bulk work needs a queue with backoff rather than a tight loop. And generate and edit both support Server Sent Events with stream: true, which lets a user facing agent show progress instead of a spinner sitting for thirty seconds.
How an Agent Should Decide Which Tool to Call
Capability is not the hard part. Judgment is. These five rules cover most of the ways an agent wastes credits or produces the wrong thing.
- Confirm the output format before spending anything. Vector suits icons, logos, diagrams and UI marks. It does not suit photographic texture. If the request is genuinely photographic, the agent should say so rather than produce an approximation nobody wants.
- Check the balance first on long runs. One call to account info before a batch of forty beats discovering the limit at item twenty six.
- Search history before generating. If a similar asset exists in past generations, retrieve it. Duplicate work is the most invisible way agents burn credits.
- Prefer edit over regenerate. When a version exists, edit is cheaper than a high quality generation and it preserves everything you did not ask to change.
- Report the tool and the cost. Say which tools ran, what they produced and how many credits went out. Silent spending is how teams lose trust in automation.
Where This Pays Off
| Workflow | What the agent handles | Tools it leans on |
|---|---|---|
| Coding agent building a UI | Generates the icon set inline, writes files, adds imports | Generate, optimize, write to disk |
| Design agent in Figma or Illustrator | Drafts the concept, refines by instruction | Generate, edit |
| Brand refresh across themes | Produces light, dark and inverted variants from one master | Edit with exact hex mapping |
| Content and docs pipeline | Creates diagrams and illustrations per article | Generate, optimize |
| Ecommerce catalog | Turns product photos into clean vector marks in bulk | Convert, batch, format export |
The pattern is the same in all five. The agent is not replacing the designer. It removes the twenty minute detour that breaks the designer's or developer's flow, using a file format that survives the next brand change.
Frequently Asked Questions
1. What is a text to vector AI agent?
An AI assistant connected to tools that return editable SVG markup rather than a raster image. The agent writes the brief, calls the tool, reads the returned source, then changes, verifies and saves the result on its own. The agent is the reasoning layer, the vector tools are the hands.
2. Why does the format matter? Could the agent not just use PNG?
It could, but the asset stops being useful the moment anything changes. SVG is text, so the agent can read it, recolor it by editing attributes, diff it in a pull request, and scale it from favicon to print sheet from one file. With a PNG, each of those is a new round trip and a quality loss.
3. Can an agent recolor a set of icons I already have?
Yes, and it is one of the strongest cases for agent automation. Send each file to the edit endpoint with a prompt naming exact source and destination hex values and telling the model to leave path data alone. Loop it over the set and you get a full theme variant in minutes. Since the output is source, the agent can read back every fill and confirm it matches your palette before saving.
4. Should I use MCP or the REST API?
Use MCP when the agent lives in your editor and you want assets created while you code. Use REST when it runs headless, in CI, a queue worker or your own product. Both sit on the same backend and the same credits, so running both is fine.
5. How does the credit cost work out in practice?
Costs run from 0.25 credits for a raster format conversion up to 5 for a high quality generation, with editing at 2 to 5, AI vectorizing at 1, and tracing, optimization and vector format export at 0.5 each. Every response reports what it spent and what remains, so an agent can budget a run rather than guess.
6. What happens if my agent sends too many requests?
You get a 429 with retry headers. Generate and edit allow 5 requests per minute and convert allows 5 to 10, so bulk jobs need a queue with backoff. Rate limit headers come back on every response, which makes throttling straightforward to implement.
7. Can I use agent generated vectors in commercial work?
Yes. Paid users can use API generated assets commercially and the generated content belongs to you, which covers client work, products and anything you ship.
Conclusion
Generate, edit, recolor, deliver. An agent that only does the first produces assets you then maintain by hand, which is most of the work and all of the boring part. An agent that does all four produces assets that maintain themselves.
None of it depends on a smarter model. It depends on the return type. Hand your agent a tool that returns an image and you get a picture. Hand it one that returns SVG source and you get something it can read, verify, change, theme, optimize and commit, which is the difference between a demo and a pipeline.
To try it, install the MCP server into your editor and add “use svgmaker” to your next request, or point a script at the API and watch the credits report back. Both paths start at SVGMaker.
